Relational Model

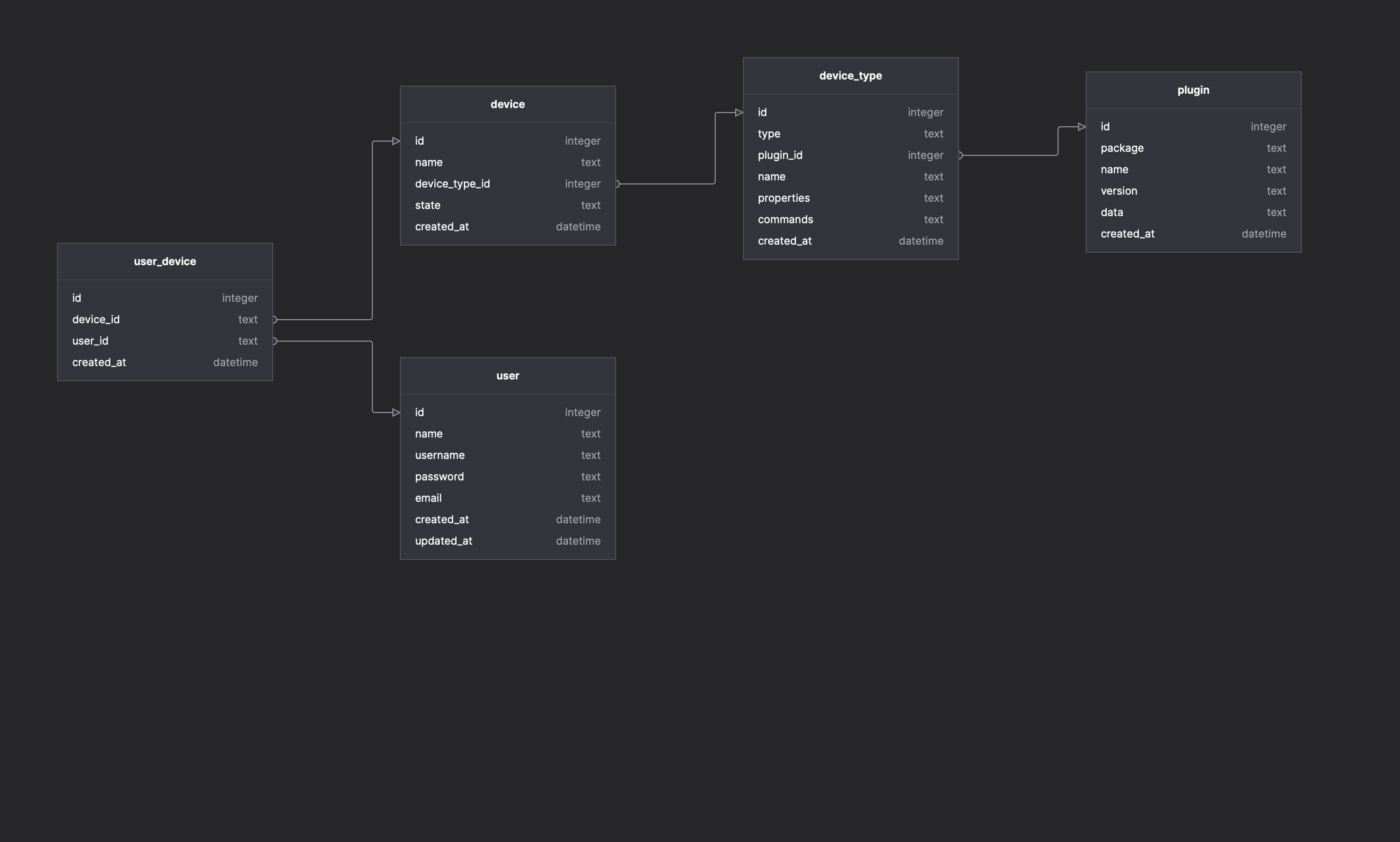

This is the relation model that describe how the resources are stored in the Database

This is the .sql that is used to create the SQLite database.

djinn.sql

/*
    Plugin:

    Describe the plugins that are installed in the board
*/

CREATE TABLE plugin (
    id INTEGER PRIMARY KEY,
    package TEXT NOT NULL UNIQUE,
    "name" TEXT NOT NULL,
    version TEXT NOT NULL,
    "data" TEXT NOT NULL,
    created_at DATETIME DEFAULT CURRENT_TIMESTAMP
);

/*
    Device type:

    Describe the type of the devices that are supported by the plugin
*/

CREATE TABLE device_type (
    id INTEGER PRIMARY KEY,
    "type" TEXT NOT NULL,
    plugin_id INTEGER,
    "name" TEXT NOT NULL,
    "properties" TEXT NOT NULL,
    "commands" TEXT NOT NULL,
    created_at DATETIME DEFAULT CURRENT_TIMESTAMP,
    FOREIGN KEY (plugin_id) REFERENCES plugin (id)
        ON DELETE CASCADE
        ON UPDATE CASCADE
);

/*
    Device:

    Describe each device that is installed in the platform
*/

CREATE TABLE device (
    id INTEGER PRIMARY KEY,
    "name" TEXT NOT NULL,
    device_type_id INTEGER,
    "state" TEXT NOT NULL,
    created_at DATETIME DEFAULT CURRENT_TIMESTAMP,
    FOREIGN KEY (device_type_id) REFERENCES device_type (id)
        ON DELETE CASCADE
        ON UPDATE CASCADE
);

/*
    User:

    Describe the user that is installed in the platform
*/

CREATE TABLE "user" (
    id INTEGER PRIMARY KEY,
    "name" TEXT NOT NULL,
    "username" TEXT NOT NULL,
    "password" TEXT NOT NULL,
    "email" TEXT NOT NULL,
    created_at DATETIME DEFAULT CURRENT_TIMESTAMP,
    updated_at DATETIME DEFAULT CURRENT_TIMESTAMP
);

/*
    User device:

    Describe the devices that can be controlled by each user
*/

CREATE TABLE user_device (
    id INTEGER PRIMARY KEY,
    device_id TEXT NOT NULL,
    user_id TEXT NOT NULL,
    created_at DATETIME DEFAULT CURRENT_TIMESTAMP,
    FOREIGN KEY (device_id) REFERENCES device (id)
        ON DELETE CASCADE
        ON UPDATE CASCADE,
    FOREIGN KEY (user_id) REFERENCES "user" (id)
        ON DELETE CASCADE
        ON UPDATE CASCADE
);
